China oem diaphragm gasi meter fekitori-n n n n n n n n n n n n n n n.
Standard
> Tevedzera neInternational Standard en1359, OIML R137 uye Mid2014 / 32 / EU.
> Yakabvumirwa neATEX
Ii 2g ex ib iia t3 gb (ta = - 20 ► kusvika + 60 ℃)
Zvigadzirwa
> Dzimba dzakagadzirwa kuburikidza nekufa - Kukanda Kwakakwirira - Hunhu Hwakasimba STREEL.
> Diaphragm yakagadzirwa neiyo synthetic rabara nehupenyu hwakareba uye tembiricha inodzivirira.
> Valve uye valve chigaro chakagadzirwa neyakagadzirirwa PF synthetic resin.
Zvakanakira
> Anti - Tamper Uchapupu.
> Alarm basa.
> Anti - magineti ekuvhiringidza basa.
> Otomatiki data kukoka (passive).
> Otomatiki meter kuverenga kuburikidza yakatarwa frequency bhendi.
> Kana network isingakwanise kutaura, point - kusvika - yekuverenga mita kuverenga kuburikidza neapp. (Kusarudza)
> Mazuva makumi matanhatu nenhoroondo yedata (zuva nezuva kushandiswa kwegasi, alarm yezvinyorwa, mamiriro ebhatiri).
Kutaurwa
Chinhu Modhi | G1.6 | G2.5 | G4 |
| Nominal Kuyerera Rate | 1.6m³ / h | 2.5m³ / h | 4m³ / h |
| Max. Chiyero chinoyerera | 2.5m³ / h | 4m³ / h | 6m³ / h |
| Min. Chiyero chinoyerera | 0.016m³ / h | 0.025M³ / H | 0.040m³ / h |
| Kudzvinyirira zvachose kurasikirwa | ≤200pa | ||
| Kuvhiringidza kumanikidza | 0.5 ~ 50KPA | ||
| Cyclic vhoriyamu | 1.2DM³ | ||
| Kukanganisa kwakabvumidzwa | Qmin≤q <0.1qmax | ± 3% | |
0.1qmaxq≤qmax | ± 1.5% | ||
| Min. Kurekodha kuverenga | 0.2dm³ | ||
| Max. Kurekodha kuverenga | 99999.999m³ | ||
| Operation Ambienttemperarure | -10~+55℃ | ||
| Kupisa tembiricha | -20~+60℃ | ||
| Hupenyu hweBasa | Makore anopfuura10 | ||
| LithiumBHupenyu Hwakavimbika | 1Makore 0 | ||
| Kubatanidza tambo | M30 kana yakagadzirirwa | ||
| Kunze Caste | Simbi/Aluminium | ||
| IP Dziviriro | IP 65 | ||

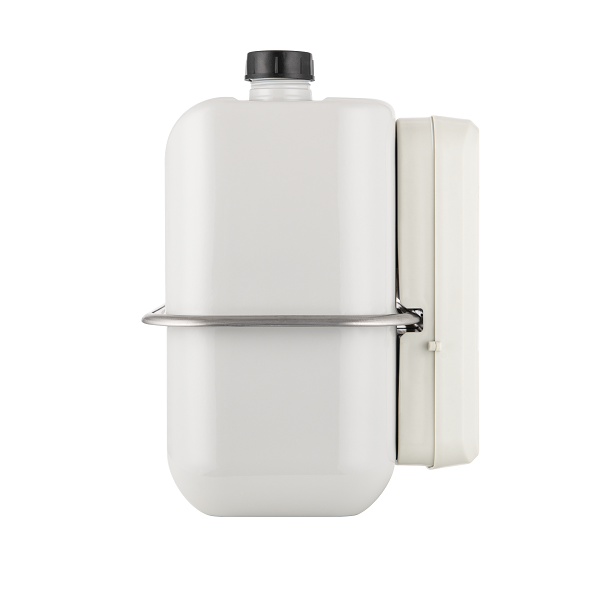

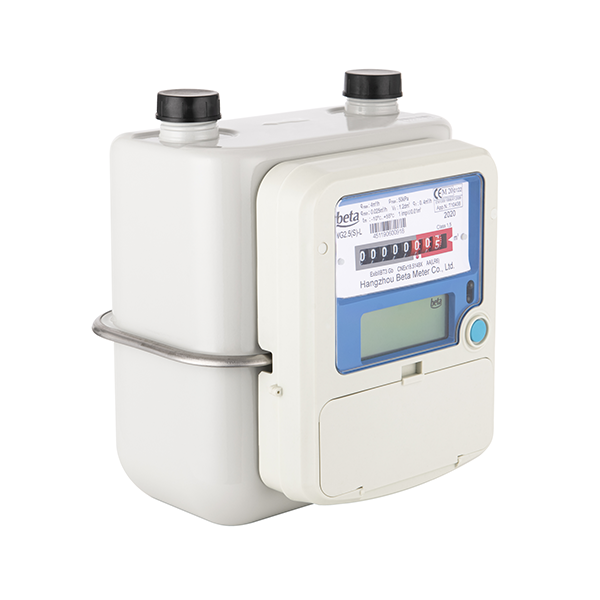

Chigadzirwa Detail mifananidzo:
